Scraper Cup Pigs ( Steel Body )

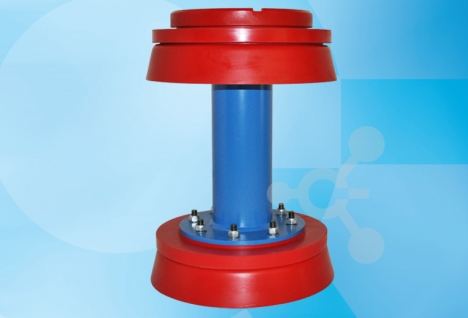

PolyEurope’s standard Cup Pigs are designed for removal of pipeline debris, liquid evacuation, product separation, batching,  displacement, cleaning, and gauging operations. The cup design is derived from the hydraulic piston seal and aggressively scrapes the pipeline bore while maintaining a constant seal.

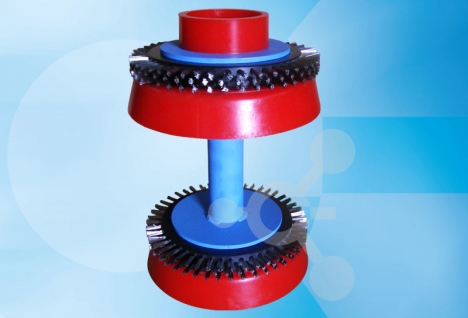

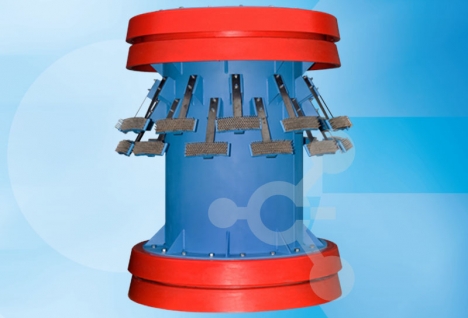

The range is available from 4” through to 14” with a single steel body bolt design and from 6” through 56” with a multi bolt design. The general purpose design is supplied with four scraper cups and is successful in removing light to medium deposits from pipe walls. This cleaning ability can be further enhanced by the addition of brushes (several grades of brushes available), plough blades made of polyurethane, pin wheel cups or studded pin discs. Additional options include the attachment of magnets (for debris collection), gauge plates ( solid or segmented design)  and transmitter / data logger housings or spider noses for flow bypass or jetting.

All PolyEurope’s  Scraper Cup pigs are supplied with a polyurethane bumper nose at front  as standard.
All PolyEurope’s scraper pig body assemblies are welded to code standard BS EN ISO 15614-1 2004 with optionally welds being subjected to NDT testing (MPI) afterwards and coated with an anti-corrosion surface protection coating.
